The AQUA Logic Inline XL (10 inch) – Ultra Washable – 0.01 micron drinking water filter. Easy to install between existing pressurized water systems, it ensures clean and safe drinking water for your entire household. The large capacity guarantees a constant water supply. In addition, the reusable ultra membranes can be washed to maintain top performance, ensuring long service life and efficiency.
Filter Element
Ultrafiltration membranes with a pore size of 0.01 micron providing effective filtration against:
- Pathogenic organisms: Bacterial reduction of >99.9999% (including Cholera, Shigella, Typhus, Klebsiella terrigena, Legionella, and E. coli)
- Cysts/Protozoa: (including Giardia and Cryptosporidium)
- Micro- and Nano-plastics: Removes particles as small as 0.03 microns (30 nanometers)
All parts are BPA-Free. The filter works without the addition of chemicals and is made up of maintenance-free and corrosion-free parts.
How to use
1. Connecting the filter
Make sure you purchase the required connection materials, such as flexible braided hoses, separately for correct installation of the filter into the water line. It is recommended to install a shut-off valve before the water filter. Screw the supplied 3/4 inch nipples into the lid of the filter.
Note: the filter housing already contains sealing rings. No O-rings or Teflon tape are needed for the nipples. Ensure that the water flow follows the correct direction (IN/OUT).
2. Mounting the filter system
Use the supplied wall bracket to mount the system. Allow at least 10 cm of free space below the system so that the bowl and filter element can be easily removed.
3. Marking the date of first use
Fill in the recommended replacement date of the filter on the supplied date sticker and place it visibly on the filter housing.
4. Venting the system
Before first use, the filter must be vented. Press and hold the black vent button on top of the filter lid (while the system is pressurized and the tap is closed) until all air has escaped.
Tip: hold a cloth near the vent to catch any water that may be released.
5. First use
It is recommended not to use the first five liters of filtered water for consumption. After this, the filter system is ready to provide clean and safe drinking water.
Maintenance
Washing the PVDF ultrafiltration membranes
Depending on the degree and type of water contamination, the surface of the filter element may become clogged. This is noticeable by a reduced flow rate. If this happens, you can wash the membranes:
- Shut off the water supply and open a tap to relieve system pressure.
- Place a container under the filter. Unscrew the blue plastic ring counterclockwise to open the housing.
- Remove the filter cartridge and open it by twisting the colored parts apart.
- Rinse the membranes with clean water. Use your hands to gently wash the membranes by moving them back and forth while rinsing.
- Reinsert the filter element and close the housing; do not overtighten. Ensure the rubber sealing ring is clean and correctly positioned.
- Vent the system again as described above.
- Do not use the first liters after maintenance for consumption.
Backwashing the PVDF ultrafiltration membranes
The filter can also be cleaned by opening the drain valve at the bottom of the housing. Optionally, a 1/8” ball valve can be installed here.
Storage and winterizing
Wet storage: store the filter element (e.g., in a plastic bag) in the refrigerator.
Dry storage: allow the filter element to dry completely and store it in a clean place. Ensure that the membranes are thoroughly dry to prevent mold formation.
Note: Although the filter housing is frost-resistant, it is important to completely drain the filter and system before winter storage. This prevents freezing and damage to the filter.
Shelf life and Life Span
The recommended service life under daily use is approximately 2 years.
Note: the actual service life of the filter element depends on the level of contamination in the source water. As long as water flows through the filter, it is safe for drinking because it has passed through the ultrafiltration membranes, provided the water filter is used as explained in this user manual.

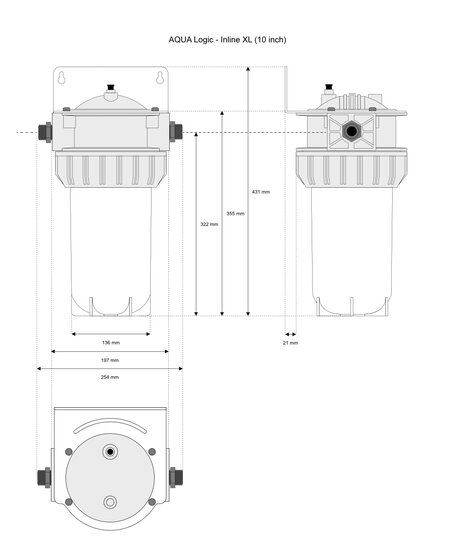

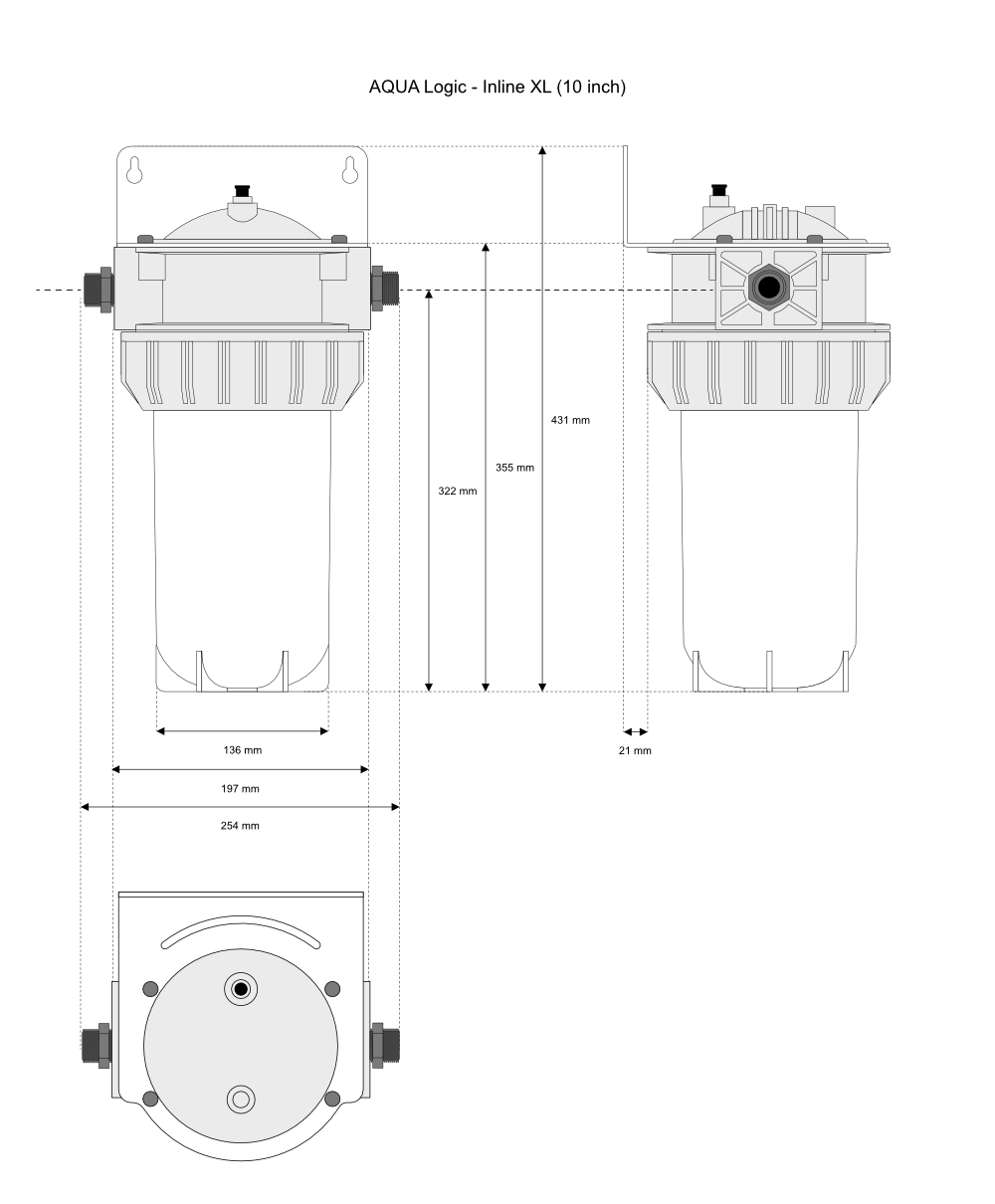

Dimensions
(Click on the image below for a larger version)
Disclaimer
This water filter is designed to reduce a wide range of contaminants to levels generally considered safe for daily use. However, it may not be effective against water heavily contaminated with industrial chemicals or hazardous substances. Although water quality is significantly improved, the filter is not intended for specialized or medical use. Individuals with weakened immune systems or specific health concerns are advised to take extra precautions and consult a professional if necessary.
