Consumer emergency water filter
This type of filters is offered on the consumer market under various brand names. Our Filter is distinctive because of the useful syringe. For more professional use and real assistance, we recommend filters that pre-filter more extensively such as the AQUA Logic - Siphon - C-Ultra or the AQUA Logic - travelmate - CCS
Filter element:
Ultra (Ultra membranes)
0.03 micron ultra-membrane filter
Suitable against: protozoa (including Giardia and Cryptosporidium) and bacteria (including Cholera, Typhus, Legionella and E. Coli) - bacterial reduction: > 99.9999%
Filter characteristics
Ultrafiltration membranes with a pore size of 0.03 micron.
Filters: Pathogenic organisms: Log 6 bacterial reduction: >99.9999% (including Cholera, Shigella, Typhus, Klebsiella Terrigena, Legionella and e. Coli) and 99.9% Protozoan Cysts (including Giardia and Cryptosporidium) that produce waterborne diseases.
And Micro- and Nano plastics from a size of 0.03 microns (30 nanometers).
The AQUA Logic Travel Mini therefore greatly reduces the risk of contracting illnesses such as diarrhea, dysentery, and Giardia.
How to use this water filter
Always use the most clean water source that is available and preferably use the filter in a clean environment. This water filter is designed for relatively visually clear water.

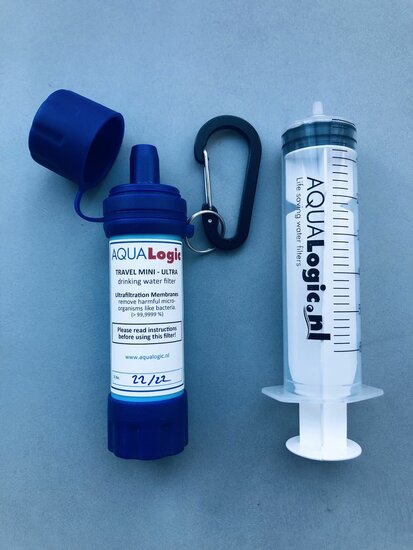

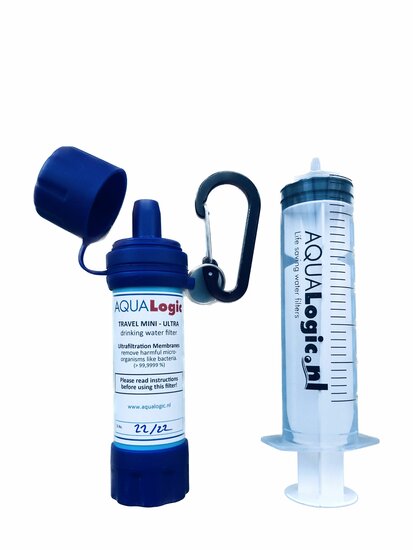

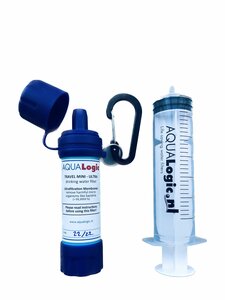

Making use of the syringe
1. Prepare: Fill up the syringe by drawing water which you intent to filter. Open the mouthpiece cap of the filter and prepare a water container (e.g. glass, cup or bottle) to collect the clean filtered water.

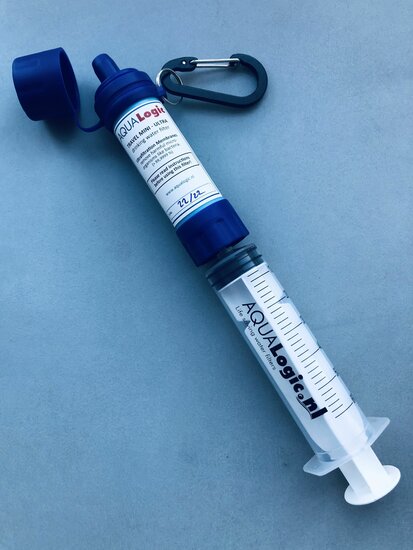

2. Filter: Connect the full syringe to the inlet of the filter and push the water from the syringe through the filter while collecting the filtered water.
Using your mouth:

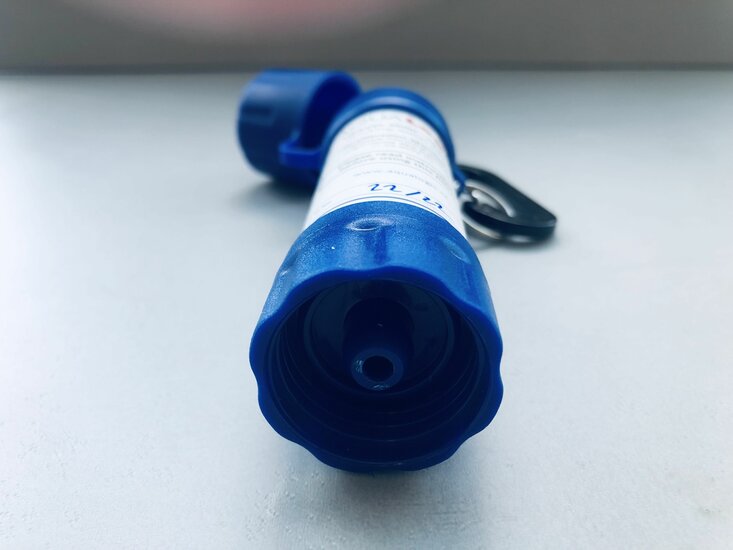

1. Prepare: Attach the included inlet hose to the inlet on the bottom of the water filter.
2. Sip: Start using the AQUA Logic Travel Mini by opening the mouthpiece cap. Then put the inlet hose in the water and take 5 quick, strong sips from the mouthpiece to get the water flowing.
Using a plastic soda bottle or water bag (e.g. Coca Cola):
1. Prepare: Fill up the bottle with the water which you intent to filter. Then screw the water filter on top of the bottle and open the mouthpiece cap of the filter.
2. Filter: Drink the water directly from the filter by taking strong sips and simultaneously squeezing the bottle to push to water out of the bottle through the water filter.
After use: Blow out the filter as much as possible through the mouthpiece, possible also by simultaneously sucking the filter empty from the other side using the syringe.
With the provided hose you can also connect and combine the AQUA Logic Mini Travel with an AQUA Logic mobile water filter.
Life Span
The AQUA Logic Travel Mini is designed for filtering relatively visually clear water and filters up to 1.200 liters water.
The Travel Mini will no longer filter water when the product has reached the end of its working life. Inability to sip water through the filter indicates that the product should be replaced. Shelf life of this filter is 5 years.
Note: The life span of this water filter will depend on the level of contamination in the water source. As long as there is water coming out through the filter, will this water be suitable drinking water because it has been filtered through the ultra-membranes, provided the water filter is used as explained in this user manual.
Caution
Caution is important in using this filter as it concerns the safety of drinking water. Be aware of the fact that a drinking water filter never gives ‘absolute filtration’, but reduces contamination to an acceptable level. Drinking untreated water may expose you to harmful microorganisms and increase your risk of gastrointestinal illness. Improper usage of the AQUA Logic Travel Mini increases your risk of exposure to harmful microorganisms and increases your risk of gastrointestinal illness. Reduce your risk of becoming sick by following these safety instructions and by educating yourself on backcountry water safety. Never use the water filter to filter seawater or chemically contaminated water, including water from mining tailing ponds or from near large agricultural operations. DO NOT DROP or place pressure on this product in any manner. The intentional or unintentional impact of this product on a solid surface may damage the filtration mechanism within it and render it inefficient and unusable. This product must not be used by children without the supervision of an adult.
Disclaimer
Innologic B.V. and its affiliated entities shall be neither liable for any damages arising out of or as a result of the use of the AQUA Logic Travel Mini for any purpose other than for which it is clearly intended, nor for any malfunction resulting from the failure of the user of this filter to strictly abide by the usage and safety information contained in this manual. The effectiveness of AQUA Logic Travel Mini may be limited by environmental or hygienic conditions that could contribute to the recontamination of water after it has passed though the product's internal filter. These conditions include but are not limited to: 1. Use of the AQUA Logic Travel Mini with dirty and bacteria-contaminated hands 2. Placement of AQUA Logic Travel Mini in a mouth contaminated with bacteria 3. Use of the Travel Mini in a dense coliform environment 4. Failure to maintain a sterile mouthpiece on the Travel Mini. 5. Sharing of AQUA Logic Travel Mini between two individuals 6. Use in or exposure to extreme heat or freezing temperatures. AQUA Logic Travel Mini is a personal water filtration tool and should only be used for filtering water. The quality of the filtered water is not guaranteed if the product is submitted to conditions other than those encountered during its normal use. To prevent breakage, do not drop or hit the Travel Mini against a hard object. Do not drop the product in polluted water as this might contaminate the membrane. Always keep the mouthpiece cap closed when product is not in use. Stop using the Travel Mini if cracks are noted on the main body and especially on the dark blue bottom part. Your use of AQUA Logic Travel Mini implies that you accept and agree to these terms, conditions, and disclaimer.
